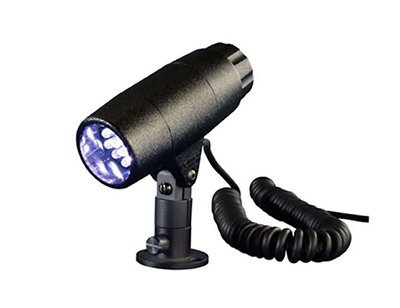

Map / Utility Light LED
- NVIS White per MIL-STD3009.
- Fully dimmable from the detent off to 100% intensity.
- Light intensity: 30 ft candles min to 60 ft candles max at 1 meter per MIL-L-6503.
- Operates at 18-32 VDC and .5 amps max (28vdc).
- Weight is 1.1lb and mounts per MS17246-1.The map light can be configured with any lens.
- Visible clear, yellow, blue, red or NVIS green A or B.
Among the many benefits of this new design are greatly improved Illuminance, low current draw, high reliability, “cool” operation and lighter weight. The LED sources used have a rated life of 50,000 hours. Unlike standard incandescent lamps, LED’s can achieve this long life, as there are no filaments to fail due to shock or vibration. NVIS versions are also available in NVIS White or NVIS Green A.

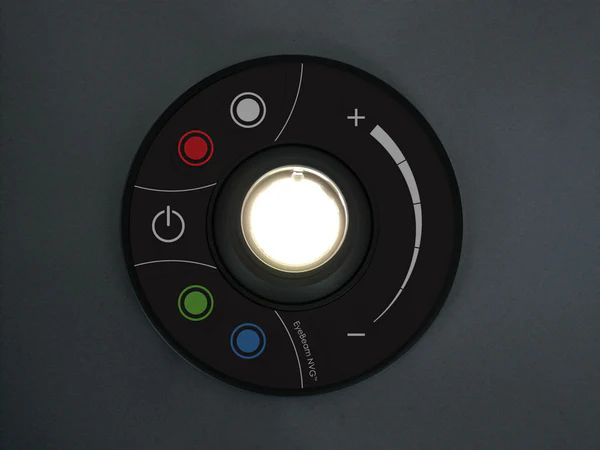

Interior Cabin NVG Light LED
- Designed for work stations, crew stations, disembarking and cargo hook lighting.
- NVIS White per MIL-STD3009.
- Light intensity: 0.2 ft candles min to .5 ft candles max at 1 meter per MIL-L-6503H.
- Operates at 28VDC and .2 amps max.
- This light can be configured with any lens. Visible clear, yellow, blue, red or NVIS green A or B.
- Use with Power Supply: 88033010-1B.
Antibacterial Lights
ATT continues to work to improve aircraft cabin health and safety by integrating new antibacterial lighting that kills various bacteria in the cabin. The LEDs produce a high-quality light that provides continuous disinfection through precisely engineered wavelengths of visible light, and, unlike UV, is harmless to humans and animals. These antibacterial light engines can be designed to fit into a wide range of shapes and sizes of lights.
Area Utility Lights
Area Utility Lights are versatile products that support a wide variety of applications and requirements. We continue to develop cutting-edge designs that make area lights an important feature within the cabin design. 5mm thickness low power area light offers a variety of applications. Various optical lenses are available to aim and shape light output. Powered with 22-32 V dc.
Low Profile Lights
State of the art, solid-state lights with optional dimming features. These slim 5mm lights were originally developed to be used in the galley but can be used wherever illumination is needed. The next generation in low profile lights. Thinner design that removes the need to cut into the mounting structure panel to install the light assembly. Integrated Printed Circuit Board (PCB) light engine increases light output and uniformity over standard LED galley lights. Can be surface mounted without panel cutout allowing for easier installation.
Landing Lights , LED PAR Landing/Taxi Light
Standard, drop-in replacement lights offer substantially increased intensity and improved thermal properties. The bracket-mounted light uses far less power, reducing air pollution from carbon emissions. Powerful LED PAR multi-function landing, taxi, and wigwag light. Packed with 45 ultra-high-brightness LEDs, this light has a maximum intensity of 3,25,000 cd.
